3/8 Inch Aluminum Alloy Air-Operated Double Diaphragm Pump

Wetted Body Material: Aluminum Alloy

Center Air Chamber Material: Aluminum Alloy

Diaphragm material: Teflon (PTFE), Polyethylene(UPE)

It is suitable for the transportation of benzene, solvent, paint, glue, resin, oil, pulp, mud, sludge, casting fluid, methanol, and neutral liquid, but not suitable for acid, alkali, seawater...


Discover the unparalleled efficiency and convenience of our pneumatic diaphragm pump. Meticulously engineered for dependable fluid transfer, it consistently delivers exceptional performance and unwavering durability across a wide spectrum of industrial environments. What sets it apart is its pneumatic operation, which eliminates the dependency on electrical power, rendering it a secure and incredibly versatile option.

The compact design of our pneumatic diaphragm pump not only ensures its adaptability in tight spaces but also makes it an ideal choice for mobile applications. Its installation is a breeze, facilitating swift integration into various setups. This pump is engineered to meet the diverse and demanding needs of industries, providing an indispensable solution for fluid transfer tasks. What are you waiting for? Contact us!



Diaphragm Specification:

MaterialTemperature Range
UPE (U)+5  to  +50°C
PTFE (T)-10  to  +100°C



Specification:

Suction/ Discharge Port Size3/8”  PT(BSP)
Air Inlet Port Size1/4”  PT(BSP)
Air Exhaust Port Size1/4”  PT(BSP)
Min Air Inlet Pressure0.5 Bar(kgf/cm²) ; 7.25psi
Max Air Inlet Pressure8 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76 psi
Discharge Volume Per Cycle110 ml/cycle
Max Solids Handling⌀1.5mm
Max Air Consumption500Liter/Per Min.; 17.66 SCFM
Max Wet Suction Lift6.7 m
Packing Dimensions22Lx17Wx26H(cm), 0.34Cuft
Net Weight3.5 KG

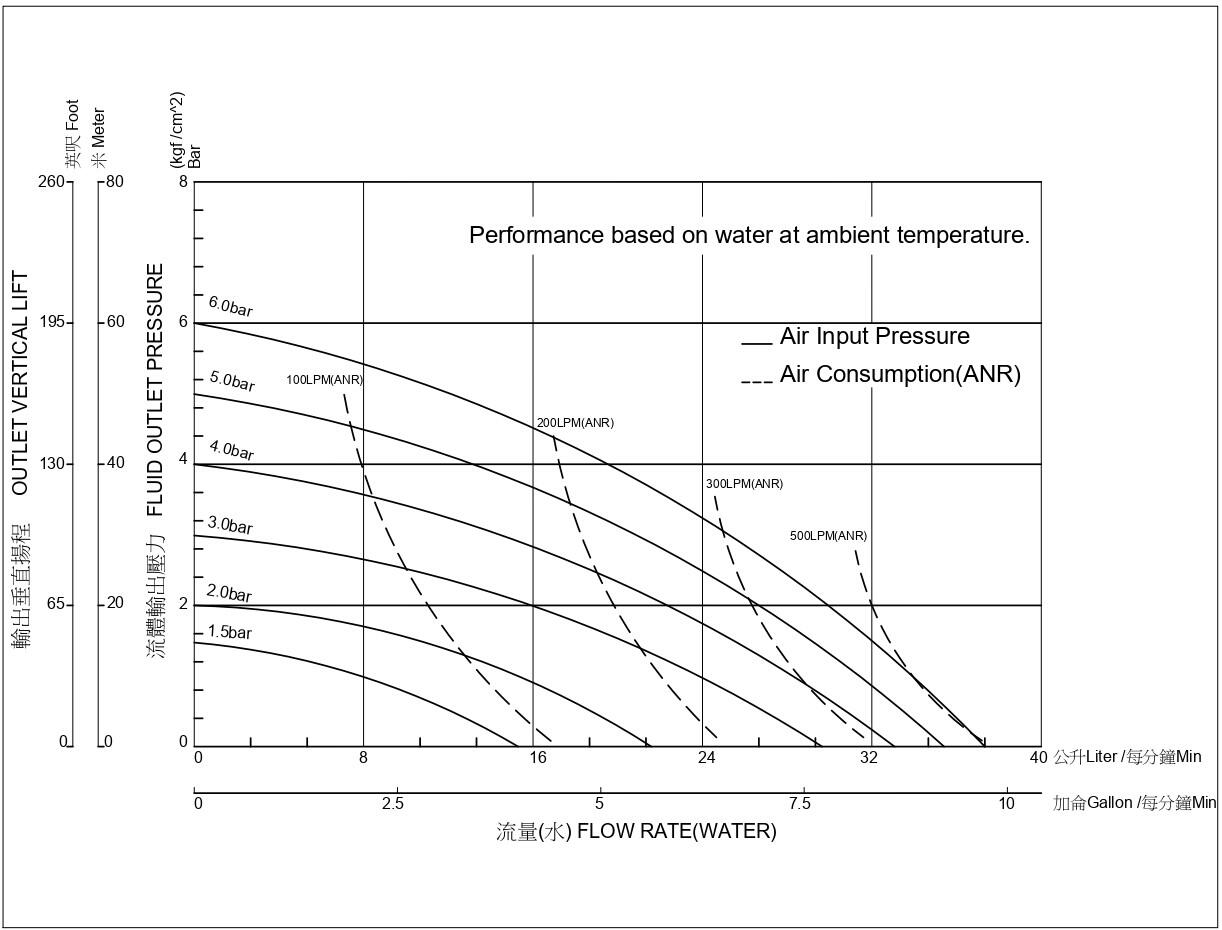

Max flow rate9.51 Gallon/Per Min. ; 36 Liter/Per Min.
Liquids ServiceabilitySuitable for neutral liquids like neutralized wastewater, sludge, paint for coating, paint, ink, and resin of low viscosity. It can also be used in transferring organic solvents, petroleum, and petrol. This type has the additional design of double liquid inlet & outlet for the ink industry.



➤Product Advantage

Air operated double diaphragm pump possesses unique advantages that set it apart from other pumps, including high versatility, safety, and portability.

In various industries, such as electronics, petrochemicals, environmental protection, and food, the pneumatic diaphragm pump holds a leading position in its application.



Here are the distinct advantages of the pneumatic double diaphragm pump:

  • [Acid and Alkali Resistance, Solvent Resistance]
  • [Explosion-proof]
  • [High Safety]
  • [Capability to Transport Fluids with Particles]
  • [Low Shear Force]
  • [Capability to Transport Viscous Fluids]
  • [Compact Size, Lightweight, and Portability]

➤Product Certifications

We are professional manufacturer of air-operated double diaphragm pump in Taiwan. Dedicated to product research and development, we now have CE, ATEX, and ISO9001 quality certifications. We take high-quality, swift service, innovative technology, honesty, and trustworthiness as our guiding principles.





CONTACT US

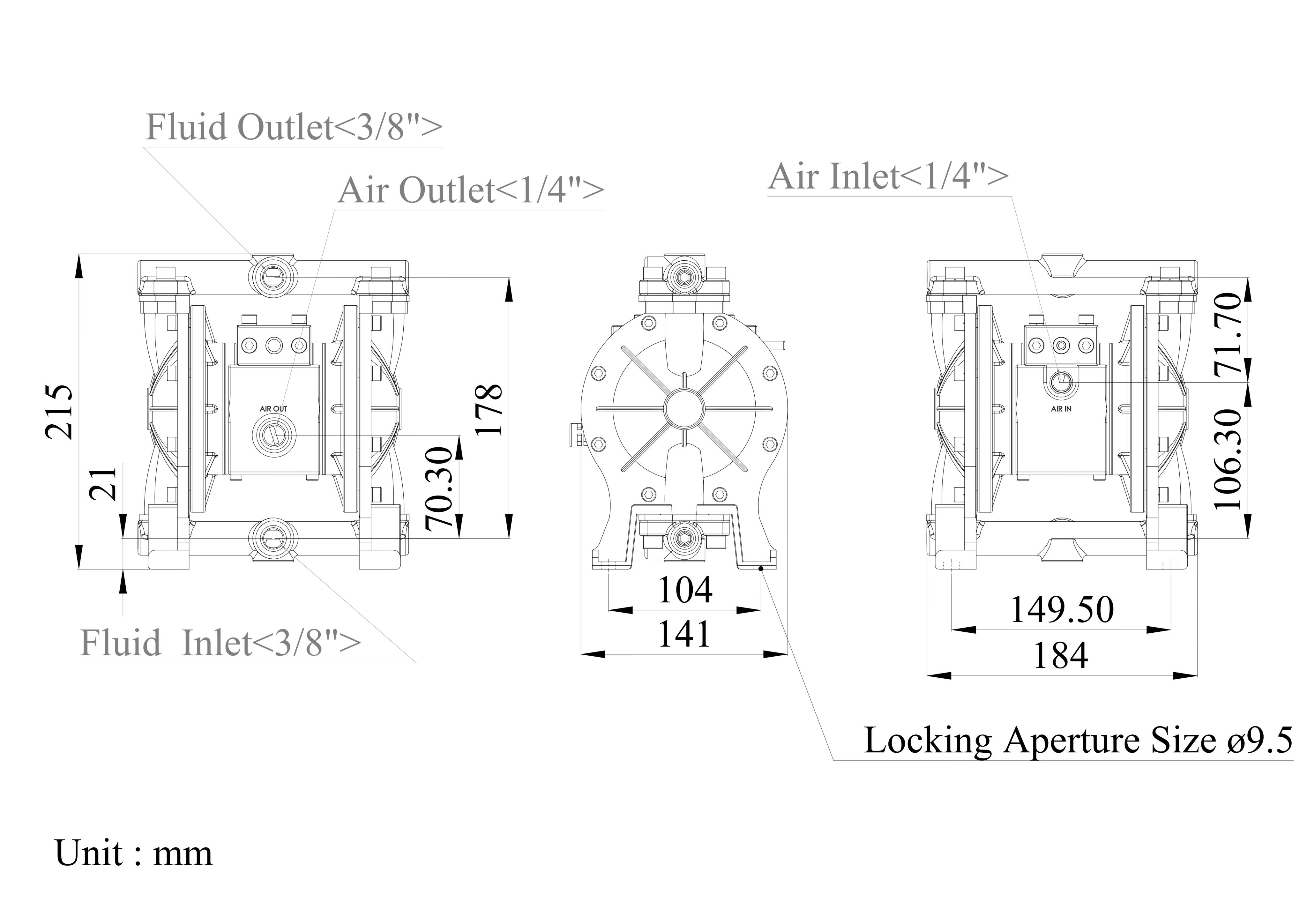

3/8 Inch Aluminum Alloy Air-Operated Double Diaphragm Pump Dimensional Data| DYI SHENG


 3/8











ModelOperating ManualPump Exploded View2D Dimensional Drawings3D Dimensional Drawings
DS03-AAT-XXXX-02
DS03-AAD-XXXX-02(For Double Out/In)
DS03-AAT-XXXX-03
DS03-AAD-XXXX-03(For Double Out/In)
