3/4 Inch Aluminum Alloy Air-Operated Double Diaphragm Pump

Wetted Body Material: Aluminum Alloy

Center Air Chamber Material: Aluminum Alloy

Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

It is suitable for the transportation of benzene, solvent, paint, glue, resin, oil, pulp, mud, sludge, casting fluid, methanol, and neutral liquid, but not suitable for acid, alkali, seawater...


Diaphragm Specification:

MaterialTemperature Range
UPE (U)-5  to  +60°C
TFM (T)-60  to  +180°C
Stantoprene ® (O)-10  to  + 80°C



Specification:

Liquid inlet & outlet3/4”  PT(BSP)
Air inlet1/4”  PT(BSP)
Air outlet3/8”  PT(BSP)
Lowest pressure0.5 Bar(kgf/cm²) ; 7.25psi
Max pressure8.3 Bar(kgf/cm²) ; 120psi
Working pressure advised1.5~5 Bar(kgf/cm²) ; 21.75psi~72.5psi
Quantity/cycle225ml
Solid limit⌀2.4mm
Air consumption540Liter/Per Min.;19.065 Scfm/Per Min
Inlet lift(deep)6 m-wet;4.5m-dry
Assemble size28(L)cm x 26(W)cm x 38(H)cm
Gross Weight8 KG
Max flow rate23.74 Gallon/Per Min. ; 90 Liter/Per Min.
Liquids ServiceabilitySuitable for neutral liquids like neutralized wastewater, sludge, paint for coating, paint, ink, and resin of low viscosity. It can also be used in transferring organic solvents, petroleum, and petrol with the plastic diaphragm.

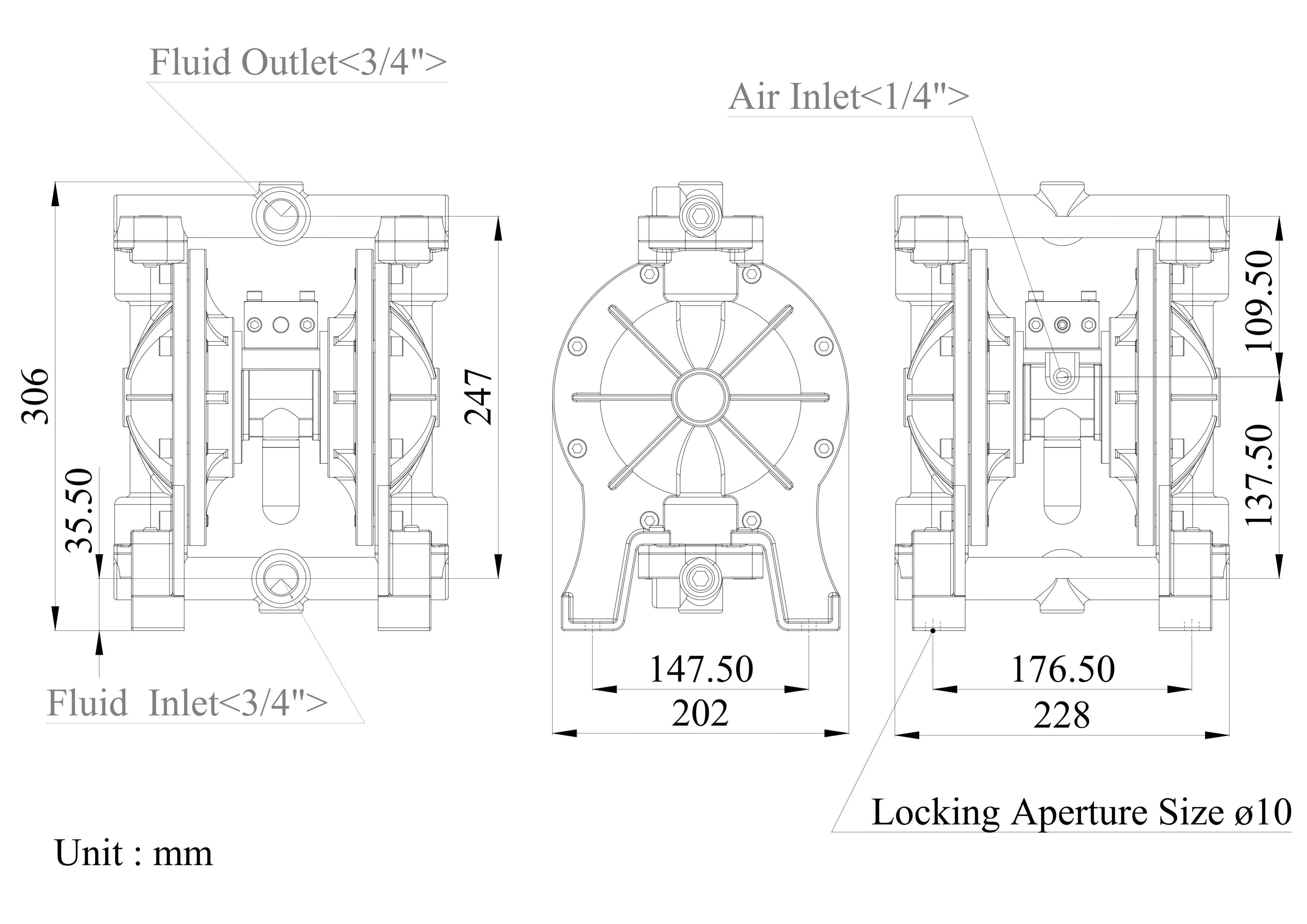

ModelOperating ManualPump Exploded View2D Dimensional Drawings3D Dimensional Drawings
DS06-AAT-XXXX-02DownloadDownloadDownloadDownload
DS06-AAD-XXXX-02(For Double Out/In)   Download
