Muffler
This silencer offers excellent chemical resistance and corrosion protection.
Its optimized design ensures effective noise reduction and vibration suppression.
With low exhaust resistance and high flow capacity, it maintains pneumatic system efficiency.
Compact, easy to install with built-in threads, it withstands up to 10 kgf/cm² and suits various pneumatic applications.
| Photo |  |  |  | |
| Applicable Pump Models | DS03/04 | DS06 | DS10 | DS14/20 |

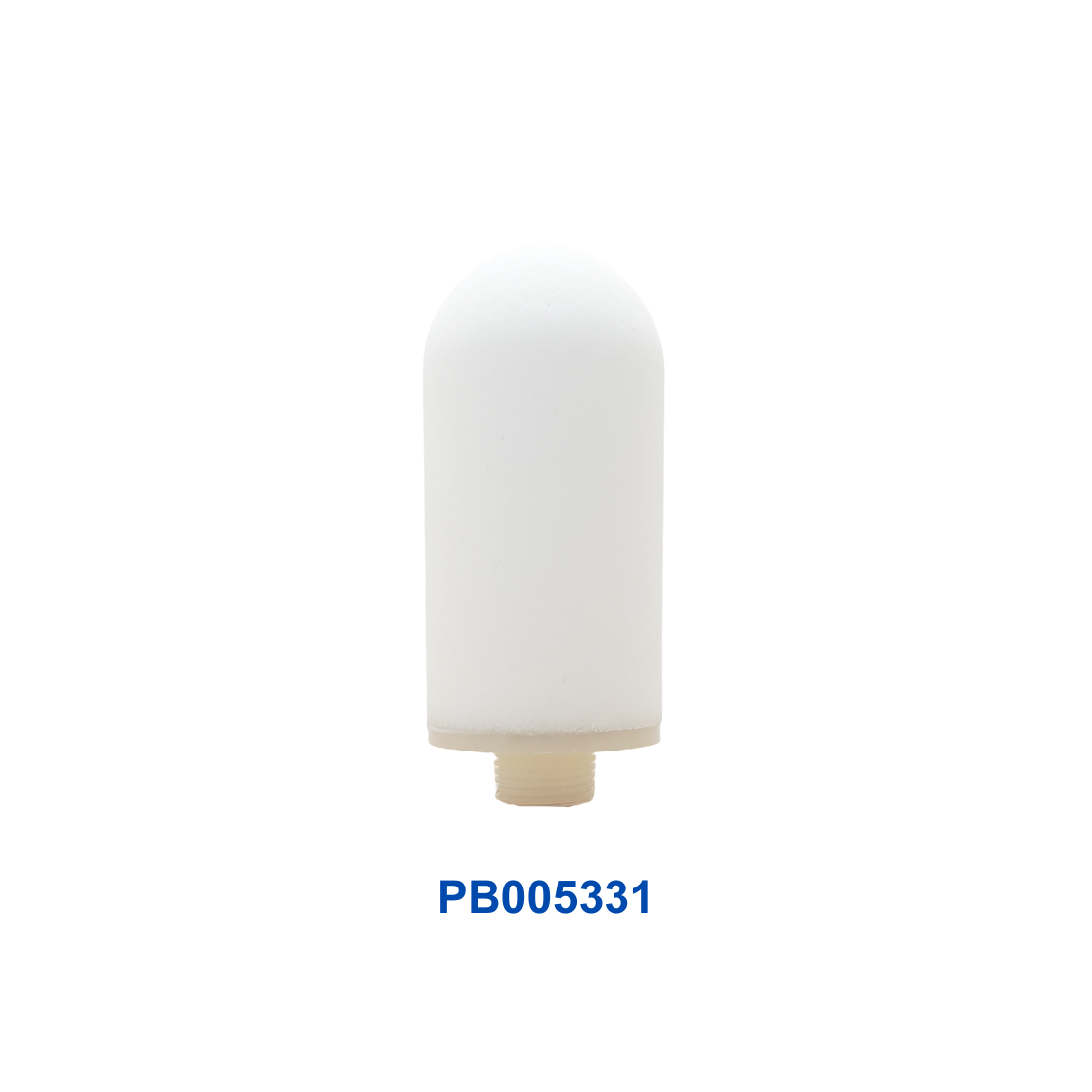

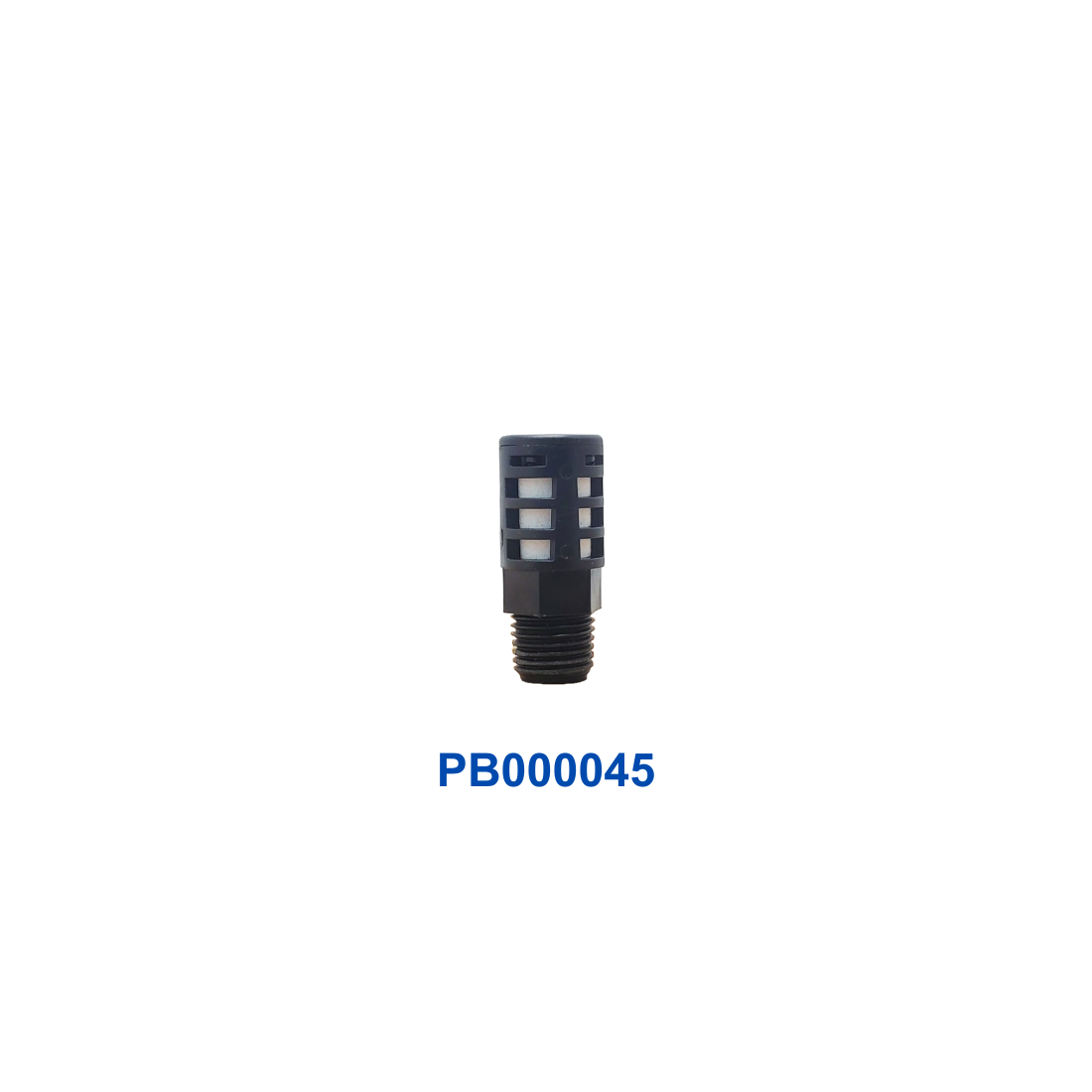

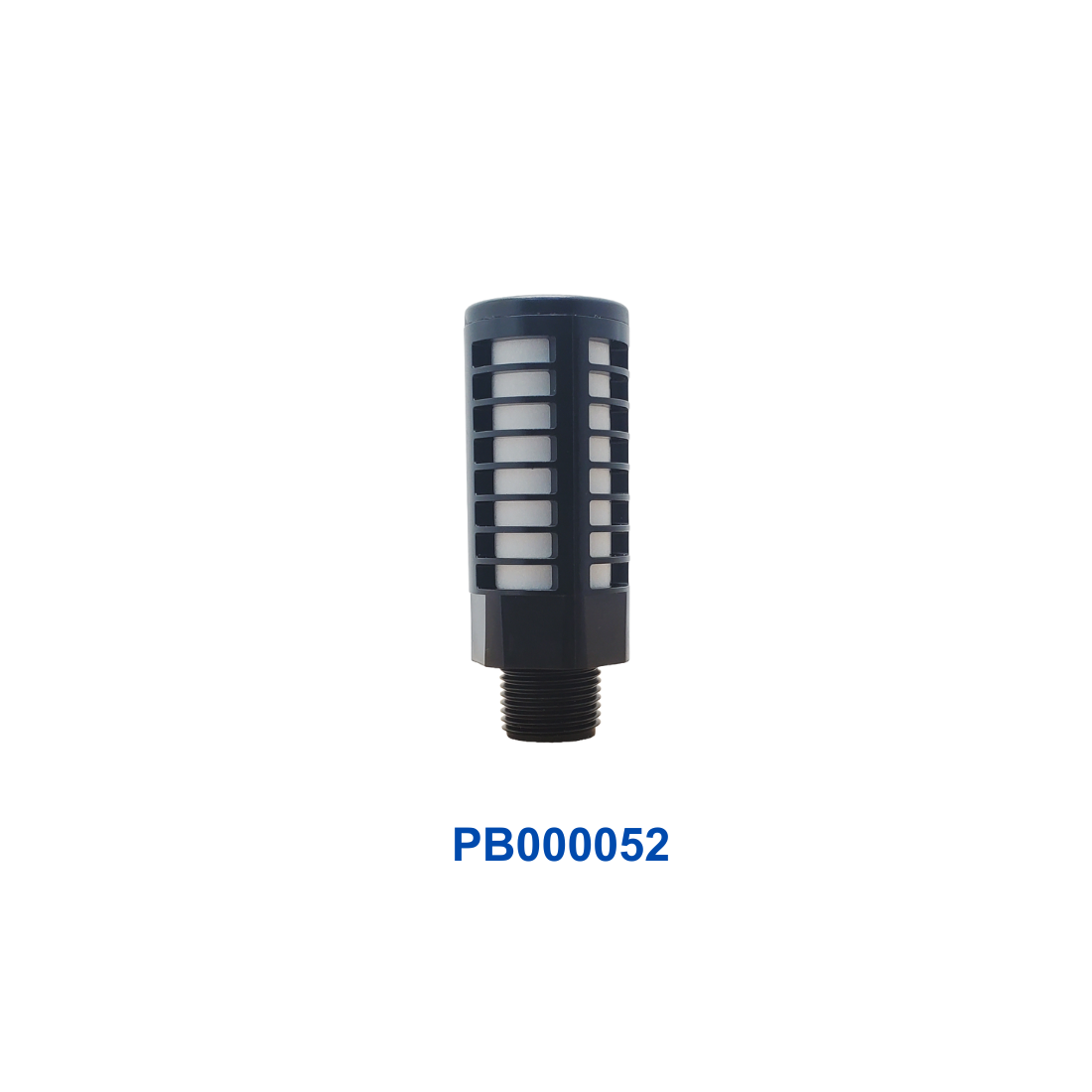

| Product Code | PB000045 | PB000052 | PB005331 | PB000049 |
| Main Material | Resin, Polyethylene | Resin, Polyethylene | Polyethylene Plastic | Polyethylene Plastic |
| Port Size | 1/4" | 3/8" | 3/8" | 1" |
| Operating Temperature Range | -20-70℃ | -20-70℃ | 0°C ~ 60°C | 0°C ~ 60°C |
| Operating Pressure Range | 0-10 kgf/cm2 | 0-10 kgf/cm2 | 0-10 kgf/cm2 | 0-10 kgf/cm2 |
| Dimensions | 36x16(mm) | 68x26(mm) | 88x38(mm) | 50x139(mm) |
| Weight | 5g | 20g | 31g | 82g |
Advantages
Excellent Noise Reduction
– Optimized structure for effective vibration absorption and noise suppression.
Low Resistance & High Flow Rate
- Low exhaust resistance ensures smooth operation of pneumatic components.
- High-density curved pore design provides large airflow capacity.
Compact & Easy Installation
- Built-in inch threads allow for quick and simple installation.
- Small size and compact structure save space.
Durable & Long Service Life
– High-strength structure with uniform porosity withstands high temperatures.
High Pressure Resistance
– Operates under pressure up to 10 kgf/cm².
Chemical Resistance
–Made of polyethylene, offering excellent resistance to chemical solvents, rust, and corrosion.
