1-1/2 Inch Stainless Steel 316 Air-Operated Double Diaphragm Pump

Wetted Body Material: Stainless Steel 316

Center Air Chamber Material: Aluminum Alloy

Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

It is suitable for the transportation of glycol, alcohol, sodium hydroxide, nitric acid, carbonic acid, fruit acid, enzyme, caustic soda, ammonia, asphalt, and some acid & alkali liquid, but not suitable for hydrochloric acid, dilute sulfuric acid...

Enhance your fluid transfer processes with DYI SHENG's high-quality pneumatic diaphragm pump. Engineered for optimal performance, it delivers consistent and reliable results in industrial applications.
This pump operates efficiently and is driven by compressed air, ensuring a hassle-free and reliable operation. Thanks to its robust construction and user-friendly design, it guarantees consistent performance while offering ease of maintenance, making it a reliable choice for various industries.

Diaphragm Specification:

Material	Temperature Range
UPE (U)	+5 to +50°C
TFM (T)	-30 to +130°C
Stantoprene ® (O)	0 to + 80°C

Specification:

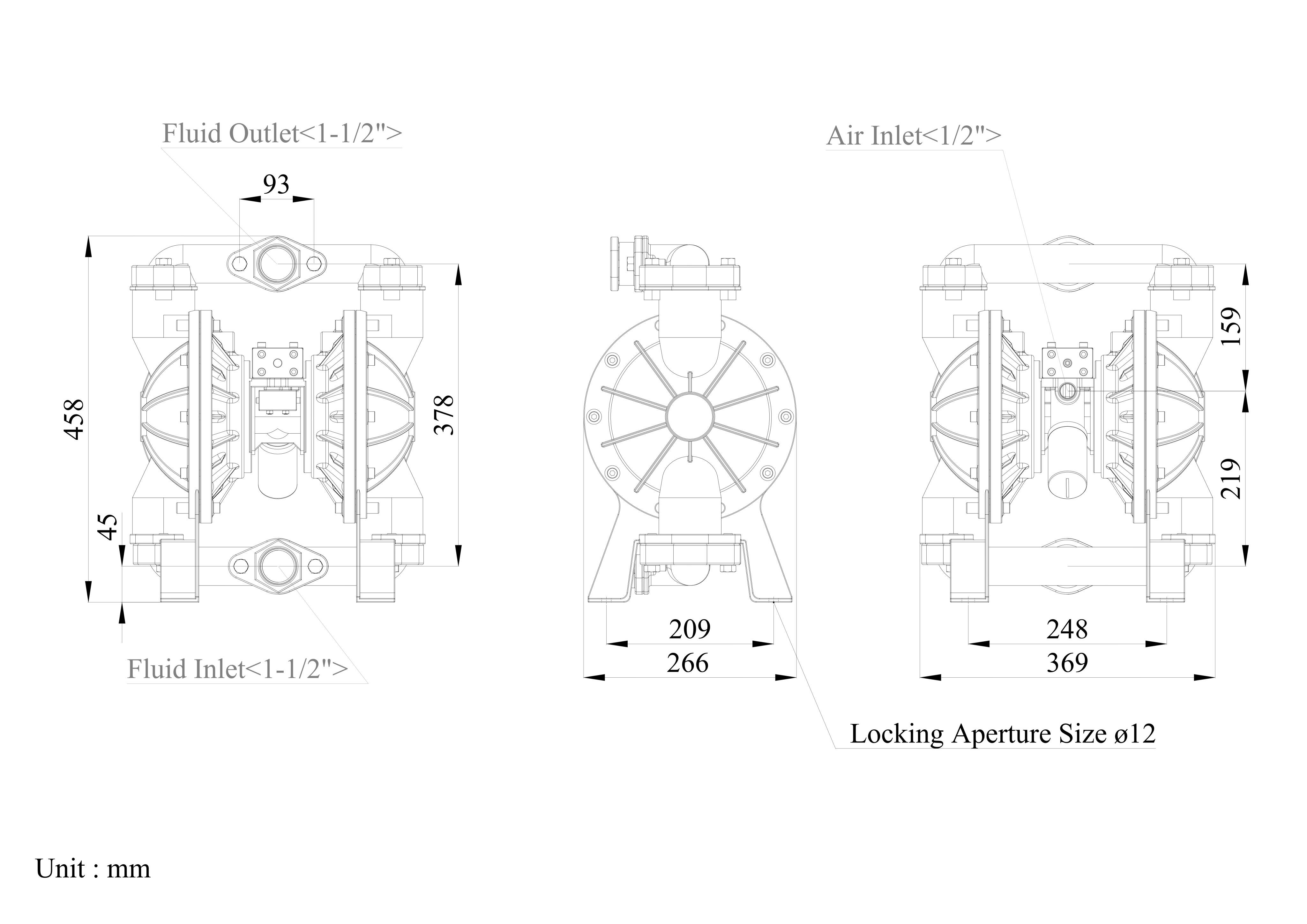

Suction/ Discharge Port Size	1-1/2” PT(BSP)
Air Inlet Port Size	1/2” PT(BSP)
Air Exhaust Port Size	1” PT(BSP)
Min Air Inlet Pressure	1.2 Bar(kgf/cm²) ; 17.4psi
Max Air Inlet Pressure	8 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range	1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle	edition01-2850 ml/cycle edition02-2250 ml/cycle
Max Solids Handling	⌀4.5mm
Max Air Consumption	2300Liter/Per Min.;81.22 Scfm/Per Min
Max Wet Suction Lift	6.7 m
Packing Dimensions	38Lx29Wx50H(cm), 1.95Cuft
Net Weight	34.5 KG

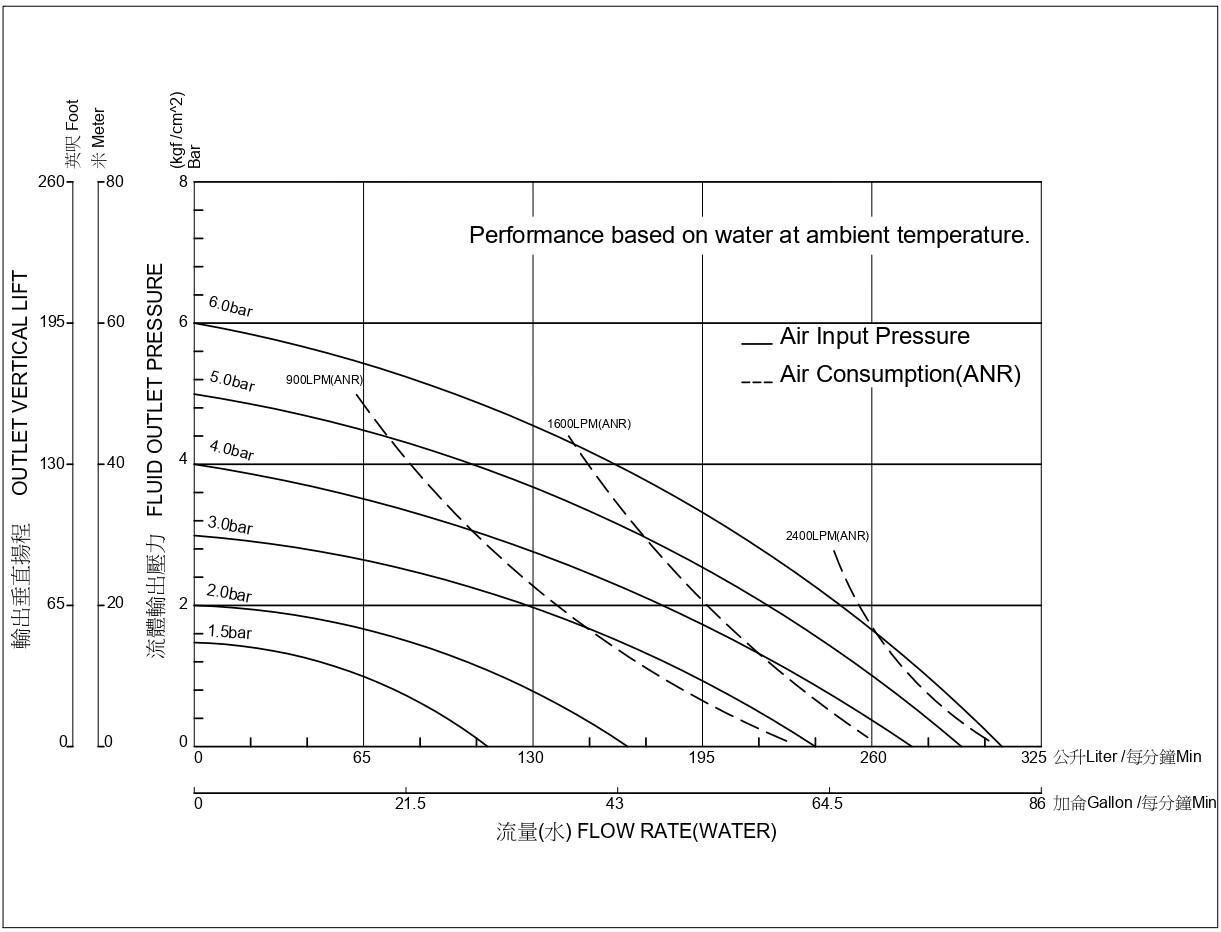

Max flow rate	81.89 Gallon/Per Min. ; 310 Liter/Per Min.
Liquids Serviceability	Suitable for almost all alkaline liquids and most acidic liquids, such as ethylene glycol, ethanol, sodium hydroxide, nitric acid, carbonic acid, fruit acids, enzymes, caustic soda, ammonia, and asphalt. It also suitable wines and food sauces. Transport of some edible raw materials such as syrup, etc., but must be cleaned regularly. But it is not suitable for some special liquids such as dilute sulfuric acid, hydrochloric acid, hydrogen bromide, aqua regia, and chlorine. It can be used in the pharmaceutical industry, food industry, chemical industry, etc.

➤Product Advantage

[Explosion-proof] - The pneumatic-driven design generates no electric sparks, making it safe to use in flammable and explosive environments.

[Acid and Alkali Resistance, Solvent Resistance] - The diaphragm design isolates the transported fluid from the driving pneumatic chamber, allowing it to handle dangerous liquid solvents containing strong acids, strong alkalis, corrosive, and volatile substances without posing harm to the environment or users.

[Low Shear Force]- The diaphragm siphon design offers the characteristic of low shear force during transportation, ensuring the integrity of fluid particles and preventing their destruction during conveyance. It is particularly suitable for transporting "shear-sensitive substances," such as jam, tapioca pearls, condiments, shampoo, wine, coconut, and more.

[Enhanced Safety] - Functioning within the pressure range of 1 to 8.3 Bar, the pneumatic-driven circulation principle facilitates prolonged dry-running intervals without the risk of overheating. Moreover, in the event of pipeline obstruction and ensuing strain, the pump halts through pneumatic equilibrium, mitigating potential hazards like persistent pressure accumulation, pipeline rupture, or liquid seepage.

[Capability to Transport Fluids with Particles] - Thanks to its diaphragm siphon design, the pneumatic double diaphragm pump is highly suitable for transporting fluid containing particles. As long as the particle size remains within the allowable limits of various pump specifications, it ensures smooth fluid transportation without the risk of blockages.

[Compact Size, Lightweight, and Portability]- Powered by compressed air, the pneumatic diaphragm pump operates simply by connecting to an air supply line, eliminating the need for heavy motor systems. This grants significant advantages and convenience in terms of size, weight, mobility, and operation.

[Capability to Transport Viscous Fluids]- With pneumatic-driven and siphon principles, there is no need to consider motor torque or the issue of viscous fluid dry-running. The pneumatic diaphragm pump can effectively handle fluids with viscosity, such as resin, slurry, paint, and coatings.

➤Product Certifications

DYI SHENG is a professional manufacturer of air-operated double diaphragm pumps in Taiwan. Dedicated to product research and development, we now have CE, ATEX, and ISO9001 quality certifications. We take high-quality, swift service, innovative technology, honesty, and trustworthiness as our guiding principles.
