1/2 Inch Aluminum Alloy Air-Operated Double Diaphragm Pump

Wetted Body Material: Aluminum Alloy

Center Air Chamber Material: Aluminum Alloy

Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

It is suitable for the transportation of benzene, solvent, paint, glue, resin, oil, pulp, mud, sludge, casting fluid, methanol, and neutral liquid, but not suitable for acid, alkali, seawater...


Diaphragm Specification:

MaterialTemperature Range
UPE (U)-5  to  +60°C
TFM (T)-60  to  +180°C
Stantoprene ® (O)-10  to  + 80°C



Specification:

Liquid inlet & outlet1/2”  PT(BSP)
Air inlet1/4”  PT(BSP)
Air outlet1/4”  PT(BSP)
Lowest pressure0.5 Bar(kgf/cm²) ; 7.25psi
Max pressure8.3 Bar(kgf/cm²) ; 120psi
Working pressure advised1.5~5 Bar(kgf/cm²) ; 21.75psi~72.5psi
Quantity/cycle120ml
Solid limit⌀2mm
Air consumption400Liter/Per Min.;14.12 Scfm/Per Min
Inlet lift(deep)6 m-wet;3.7m-dry

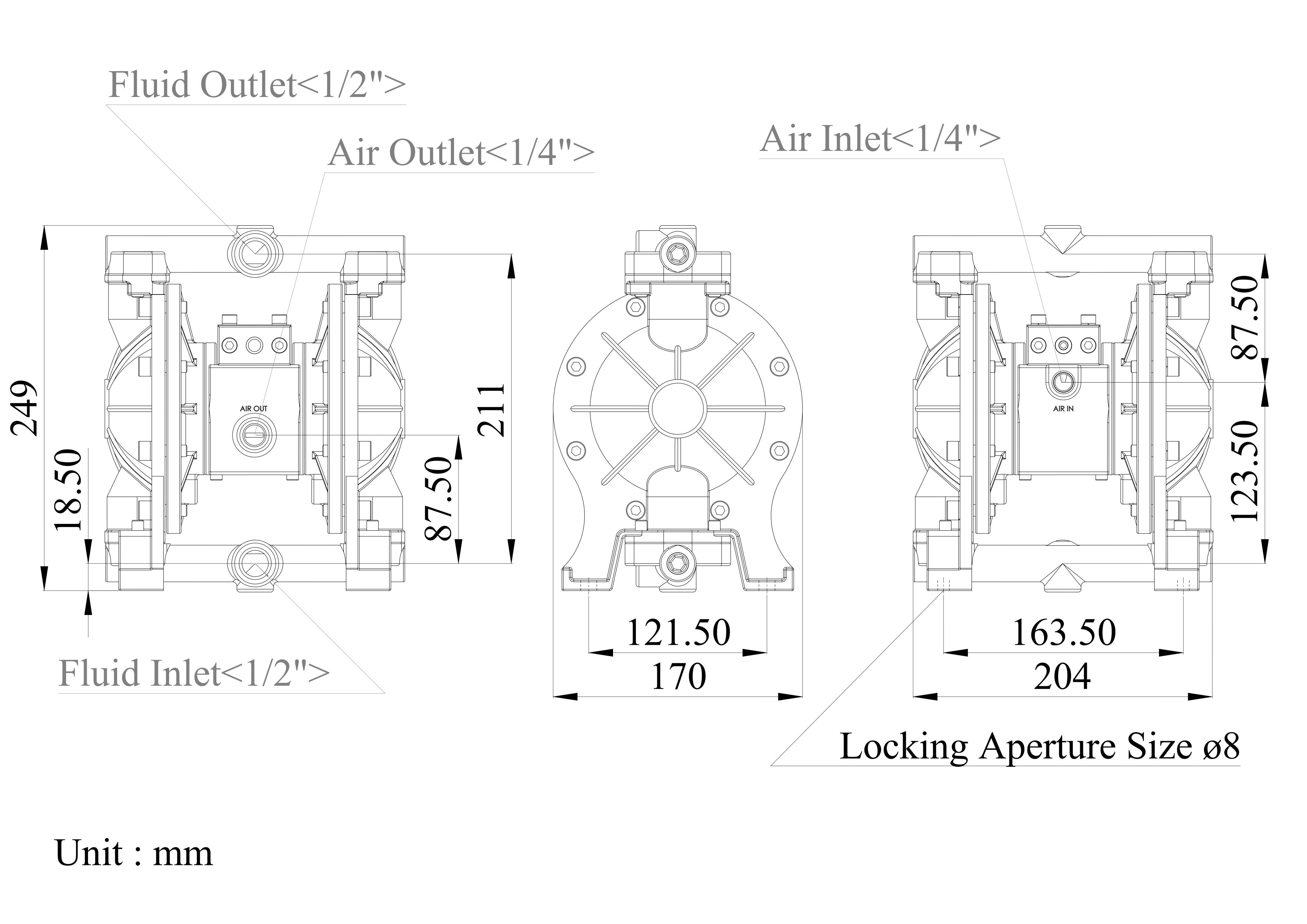

Assemble size28(L)cm x 22(W)cm x 32(H)cm
Gross Weight5.5 KG

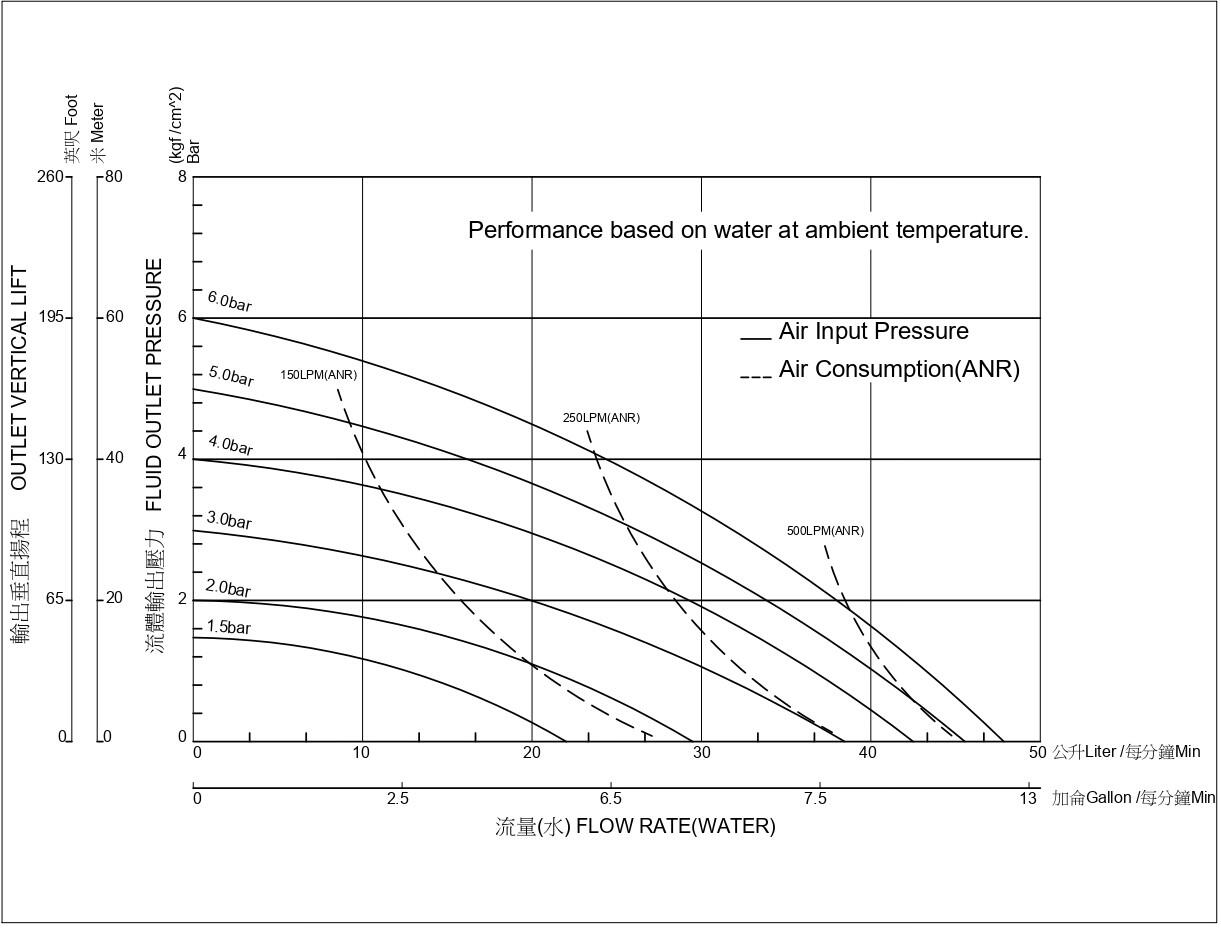

Max flow rate12.74 Gallon/Per Min. ; 48 Liter/Per Min.
Liquids ServiceabilitySuitable for neutral liquids like paint for coating, paint, ink, and resin of low viscosity. It can also be used in transferring organic solvents, petroleum, and petrol. This type has the additional design of double liquid inlet & outlet for the ink industry.







ModelOperating ManualPump Exploded View2D Dimensional Drawings3D Dimensional Drawings
DS04-AAT-XXXX-02DownloadDownloadDownloadDownload
DS04-AAD-XXXX-02(For Double Out/In)   Download
DS04-AAT-XXXX-03DownloadDownloadDownloadDownload
DS04-AAD-XXXX-03(For Double Out/In)    Download
