3/8 Inch Aluminum Alloy Advanced Coating Transport Set for Air-Operated Double Diaphragm Pump

Wetted Body Material: Aluminum Alloy

Center Air Chamber Material: Aluminum Alloy

Diaphragm material: Teflon (PTFE), Polyethylene(UPE)

It is suitable for the transportation of benzene, solvent, paint, glue, resin, oil, pulp, mud, sludge, casting fluid, methanol, and neutral liquid, but not suitable for acid, alkali, seawater...


Elevate and optimize your fluid transfer processes with DYI SHENG's exceptional high-quality double diaphragm pump. Featuring a dual diaphragm design, it stands as the epitome of balanced and consistent fluid transfer, effectively minimizing downtime and reducing the need for frequent maintenance. What sets it apart is not just its reliability but also its ease of use, thanks to its compact and lightweight design, which ensures straightforward installation and remarkable mobility.

Diaphragm Specification:

MaterialTemperature Range
UPE (U)+5   to  +50°C
PTFE (T)-10  to  +100°C



Specification:

Suction/ Discharge Port Size3/8”  PT(BSP)
Air Inlet Port Size1/4”  PT(BSP)
Air Exhaust Port Size1/4”  PT(BSP)
Min Air Inlet Pressure0.5 Bar(kgf/cm²) ; 7.25psi
Max Air Inlet Pressure8 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle110 ml/cycle
Max Solids Handling⌀1.5mm
Max Air Consumption500Liter/Per Min.;17.66 Scfm/Per Min
Max Wet Suction Lift6.7 m



Port Size3/8”1/2”
Fluid Pressure Regulator MaterialALAL
Pressure Storage Tank TypeEllipseEllipse
Pressure Storage Tank SizeΦ75xH130m/mΦ75xH130m/m
Feed and return hose MaterialPEPE
Suction cup filter size8.5cm8.5cm
Suction cup filter materialALAL
Screen Filter Material60 Mesh/SUS60 Mesh/SUS
Pump standVV
Max Flow Rate15LPM25LPM



➤Product Certifications

DYI SHENG is a professional manufacturer of air-operated double diaphragm pumps in Taiwan. Dedicated to product research and development, we now have CE, ATEX, and ISO9001 quality certifications. We take high-quality, swift service, innovative technology, honesty, and trustworthiness as our guiding principles.




CONTACT US

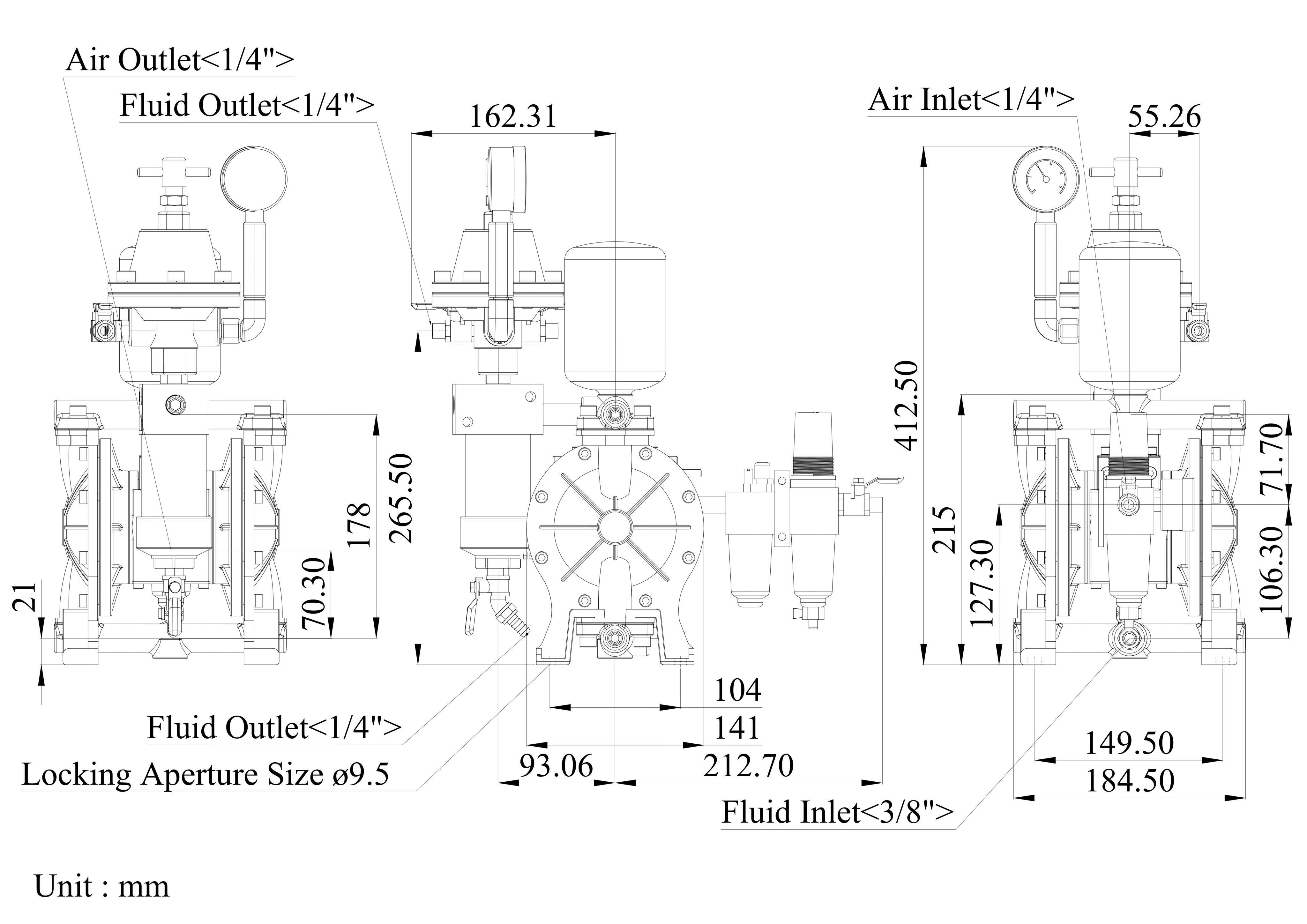

Dimensional Data of 3/8 Inch Aluminum Alloy Advanced Coating Transport Set for Air-Operated Double Diaphragm Pump | TDS-DYISHENG Pump




Diagram of Curve | DYI SHENG AODD PUMP

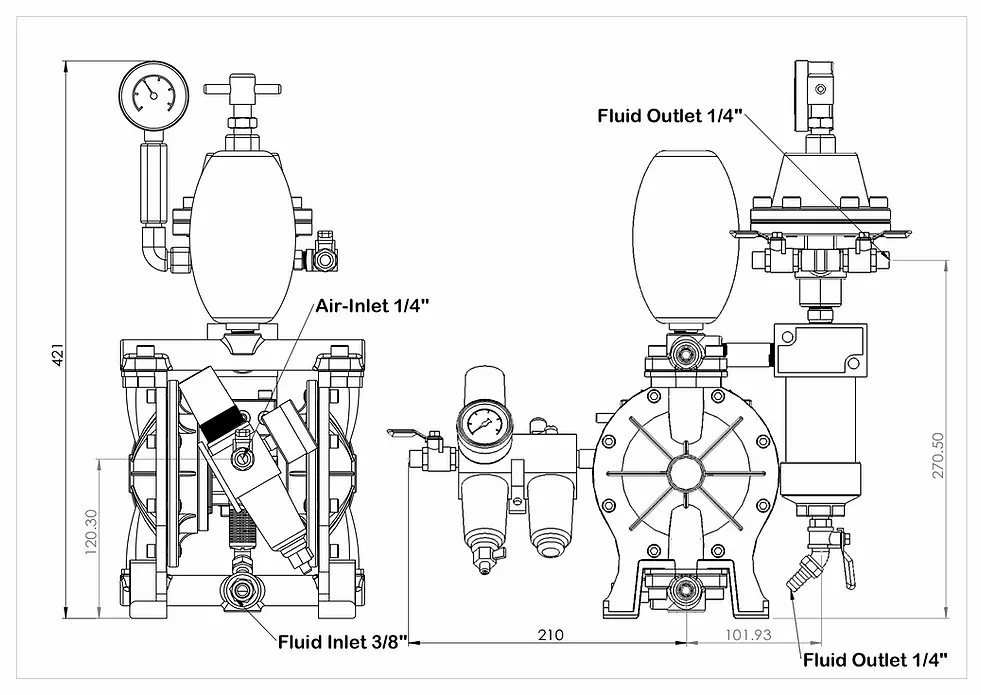

ModelOperating ManualPump Exploded View2D Dimensional Drawings
DSP03-AOBRF-02
DSP03-AOBRF-03
