1-1/2 Inch Aluminum Alloy Air-Operated Double Diaphragm Pump
Wetted Body Material: Aluminum Alloy
Center Air Chamber Material: Aluminum Alloy
Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)
It is suitable for the transportation of benzene, solvent, paint, glue, resin, oil, pulp, mud, sludge, casting fluid, methanol, and neutral liquid, but not suitable for acid, alkali, seawater...
Experience the ease and efficiency of fluid transfer with DYI SHENG's double diaphragm pump. Meticulously engineered for both durability and convenience, it showcases a rugged construction and intuitive user-friendly controls. Whether you require a pump for liquid transfer in manufacturing processes, construction sites, or automotive applications, our pump consistently delivers reliable performance and operates with remarkable efficiency. It's the key to simplifying your fluid transfer tasks with confidence.
Diaphragm Specification:
| Material | Temperature Range |
| UPE (U) | +5 to +50°C |
| TFM (T) | -30 to +130°C |
| Stantoprene ® (O) | 0 to + 80°C |
Specification:
| Suction/ Discharge Port Size | 1-1/2” PT(BSP) |
| Air Inlet Port Size | 1/2” PT(BSP) |
| Air Exhaust Port Size | 1” PT(BSP) |
| Min Air Inlet Pressure | 1.2 Bar(kgf/cm²) ; 17.4psi |
| Max Air Inlet Pressure | 8 Bar(kgf/cm²) ; 116psi |
| Best Air Inlet Pressure Range | 1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi |
| Discharge Volume Per Cycle | edition01-2850 ml/cycle edition02-2250 ml/cycle |
| Max Solids Handling | ⌀4.5mm |
| Max Air Consumption | 2300Liter/Per Min.;81.22 Scfm/Per Min |
| Max Wet Suction Lift | 6.7 m |
| Packing Dimensions | 38Lx29Wx50H(cm), 1.95Cuft |
| Net Weight | 19 KG |
| Max flow rate | 81.89 Gallon/Per Min. ; 310 Liter/Per Min. |
| Liquids Serviceability | Suitable for neutralized liquids such as neutralized wastewater, sludge, coating paints, paints, inks, methanol, mud, and low viscosity resins. It can also be used to transfer organic solvents, petroleum, and gasoline using plastic diaphragms. This type can be used in sludge dehydrators and frame filter machines. Their work efficiency and lifespan are superior to other types of pumps. |
➤Product Advantage
- Tailored for Conveying Corrosive and Abrasive Substances.
- Proficient in Handling High Viscosity Fluids.
- Preserves the Integrity of Conveyed Materials.
- Engineered for Safe Usage in Flammable and Explosive Environments.
- Pipe blockage does not lead to excessive load, overheating, or explosions.
- Provides high accuracy in its operation.
- Easy to move and install.
- Cost-Effective Maintenance.
- Capable of Extended Dry Operation without Damage.
- Ensures 100% no-stall work efficiency.
- Comes with a one-year warranty period, with a maximum of three years warranty for the diaphragm.
➤Product Certifications
DYI SHENG is a professional manufacturer of air-operated double diaphragm pumps in Taiwan. Dedicated to product research and development, we now have CE, ATEX, and ISO9001 quality certifications. We take high-quality, swift service, innovative technology, honesty, and trustworthiness as our guiding principles.

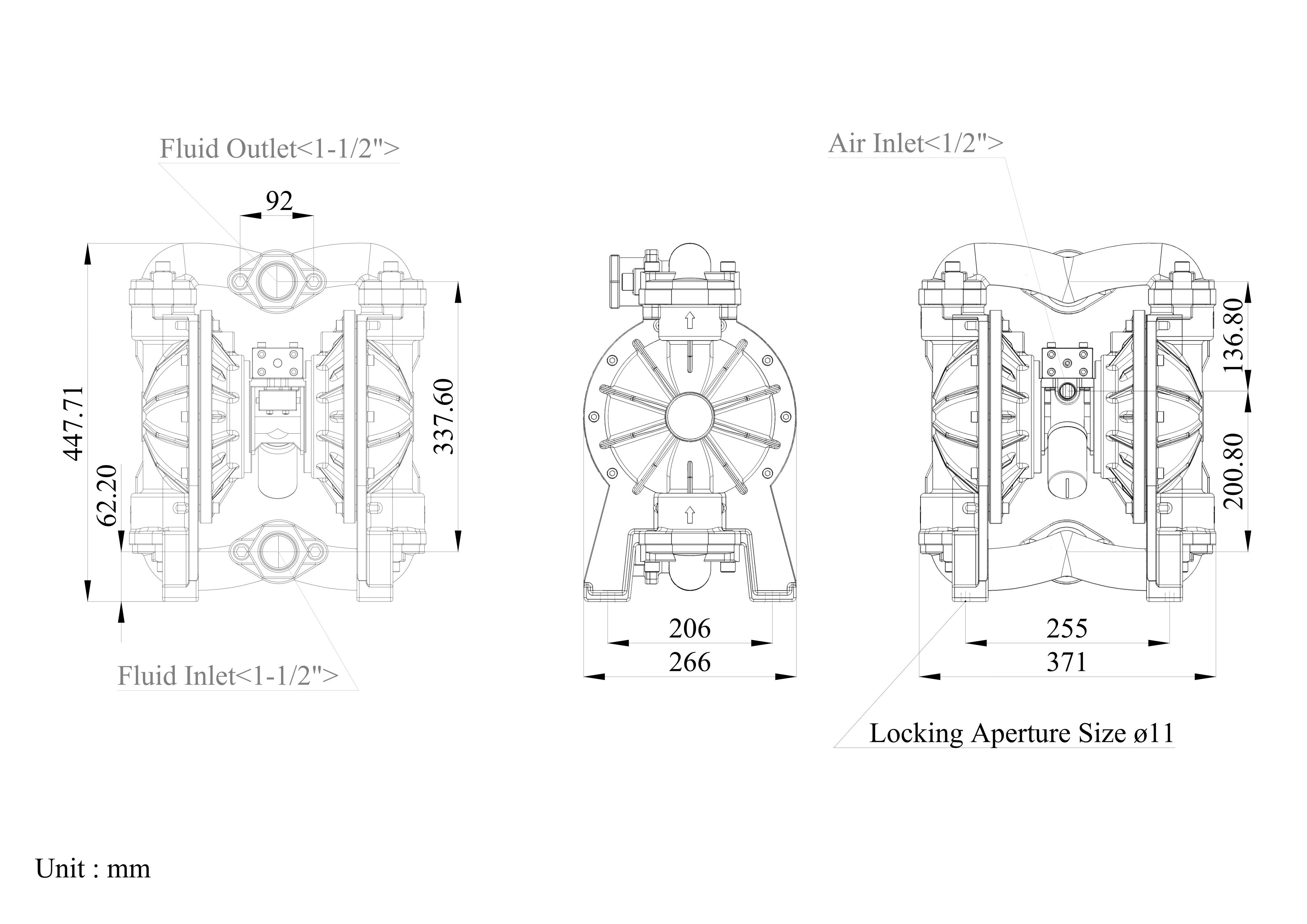

| Model | Operating Manual | Pump Exploded View | 2D Dimensional Drawings | 3D Dimensional Drawings |
| DS14-AAT-XXXX-02 | | | | |
| DS14-AAT-OOXO-0X | 01: 02: | 01: 02: | | |
| DS14-AAI-XAXS-02 | | | | |
| DS14-AAI-XXXX-02(Different side) | | | | |
| DS14-AAI-OOBO-01 | | | |
